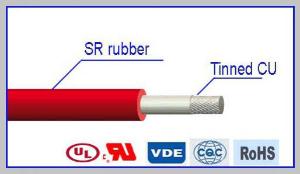

AWM 3132 Heat Resistant Silicone Rubber Electric Wire

Conductor: Bare copper, tinned copper
Insulator: Silicone rubber
Rated volt.: 300V
Test voltage: 2000V. 1min
Rated emp.: -60℃～+150℃

Technical Parameters

AWM No.	Conductor			Insulation	Wire OD		Resistance Ω/KM
	Size	Structure	OD	Normal	Normal	Tolerance	Resistance Ω/KM
	mm²	No./mm	mm	mm	mm	mm	below
26	0.128	7/0.16	0.48	0.38	1.25	±0.10	148
24	0.205	7/0.20	0.60	0.38	1.40	±0.10	93
22	0.324	7/0.25	0.75	0.38	1.55	±0.10	55
22	0.324	13/0.18	0.75	0.38	1.55	±0.10	55
20	0.519	7/0.31	0.93	0.38	1.70	±0.10	34.6
18	0.823	7/0.39	1.17	0.38	2.00	±0.10	23.2
16	1.31	7/0.49	1.47	0.38	2.25	±0.10	14.6
20	0.519	10/0.254	0.96	0.38	1.75	±0.10	34.6
20	0.519	21/0.18	0.96	0.38	1.75	±0.10	34.6
18	0.823	16/0.254	1.20	0.38	2.00	±0.10	23.2
18	0.823	33/0.18	1.20	0.38	2.00	±0.10	23.2
16	1.31	26/0.254	1.55	0.38	2.35	±0.10	14.6
16	1.31	52/0.18	1.55	0.38	2.35	±0.10	14.6
26	0.128	1/0.42	0.42	0.38	1.20	±0.10	142
24	0.205	1/0.52	0.52	0.38	1.30	±0.10	89
22	0.324	1/0.65	0.65	0.38	1.45	±0.10	54.3
20	0.519	1/0.82	0.82	0.38	1.60	±0.10	33.9
18	0.823	1/1.05	1.05	0.38	1.85	±0.10	21.4
16	1.31	1/1.30	1.30	0.38	2.10	±0.10	13.5

Application
AWM 3132 heat resistant silicone rubber electric wire is used where high flexibility is required and inhigh temperature conditions. It is therefore a suitable connection cable for home electric appliance, high voltage machines like transformers, generators, motors, traction machines.

Mechanical Properties
Tensile strength: 3.45N/mm2 min.
Elongation at break of insulation: ≥100%
Min. bending radius: 6×OD
Standard: UL758, UL62, and UL1581
Meet with RoHS, REACH rules.

Characteristics
AWM 3132 heat resistant silicone rubber electric wire has very good flexibility and good performance of resistance to high temperature, ranging from -55℃ up to 150℃.
The use of silicone rubber, a high grade corona resistant insulation material, gives the cable excellent dielectric strength.
