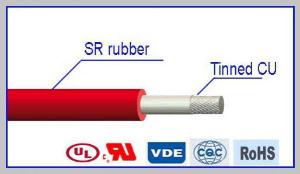

AWM 3212 Heat Resistant Silicone Rubber Wire

Conductor: Bare copper, tinned copper
Insulator: Silicone rubber
Rated volt.: 600V
Test voltage: 2000V. 1min
Rated temp.: -60℃～+150℃

Application
AWM 3212 heat resistant silicone rubber wire is used where high flexibility is required and in high temperature conditions. It is therefore a suitable connection cable for home electric appliance, high voltage machines like transformers, generators, motors, traction machines.

Technical Parameters

AWG No.	Conductor			Insulation	Wire OD		Resis. Ω/KM Max.
	Size	Structure	OD	Nominal	Nominal	Tolerance
	mm²	No./mm	mm	mm	mm	mm
26	0.128	7/0.16	0.48	1.14	2.80	±0.15	148
24	0.205	7/0.20	0.60	1.14	2.90	±0.15	93
22	0.324	7/0.25	0.75	1.14	3.05	±0.20	55
20	0.519	7/0.31	0.93	1.14	3.25	±0.20	34.6
18	0.823	7/0.39	1.17	1.14	3.45	±0.30	23.2
16	1.31	7/0.49	1.47	1.14	3.75	±0.30	14.6
14	2.08	41/0.254	1.86	1.14	4.15	±0.30	8.96
12	3.31	43/0.32	2.50	1.14	4.80	±0.30	5.64
10	5.261	35/0.45	3.20	1.14	5.50	±0.30	3.55

Mechanical Properties
Tensile strength: 3.45N/mm2 min.
Elongation at break of insulation: ≥100%
Min. bending radius: 6×OD
Standards: UL758, UL62 and UL1581
Meet with RoHS, REACH rules.

Characteristics
AWM 3212 heat resistant silicone rubber wire has very good flexibility and good performance of resistance to high temperature, range from -55℃ up to 150℃.
The use of silicone rubber, a high grade corona resistant insulation material, gives the cable excellent dielectric strength.
